Floor Plans
From Quick Condo Interiors to DWG Files for Architects, our floor plans are as versatile as we are.
Professional Measuring Solutions, Made Simple.
Our Floorplan Promise:
Accuracy Above Anything Else
We did the research.
We believe in the power of precision and reliability. That’s why our team exclusively uses the iGuide system; a proprietary and highly accurate system by Ontario based company, Planitar. Our iGuide floor plans come with a guarantee of quality, promising detailed, laser-accurate room measurements and dimensions, and reliable property square footage calculations1.
We Offer More Than Just Measurements...
You'll Love Everything About Our:
Fast Turnaround Time
We understand the pace of the real estate market and make sure you get your floor plans when you need them. Get your professional, detailed floor plans delivered within 36h of your appointment.
Versatile Applications
Our floor plans come with the flexibility of colour coding & re-labelling. Choose the colour scheme that best suits your branding or personal preference.
Interactive Floor Plans

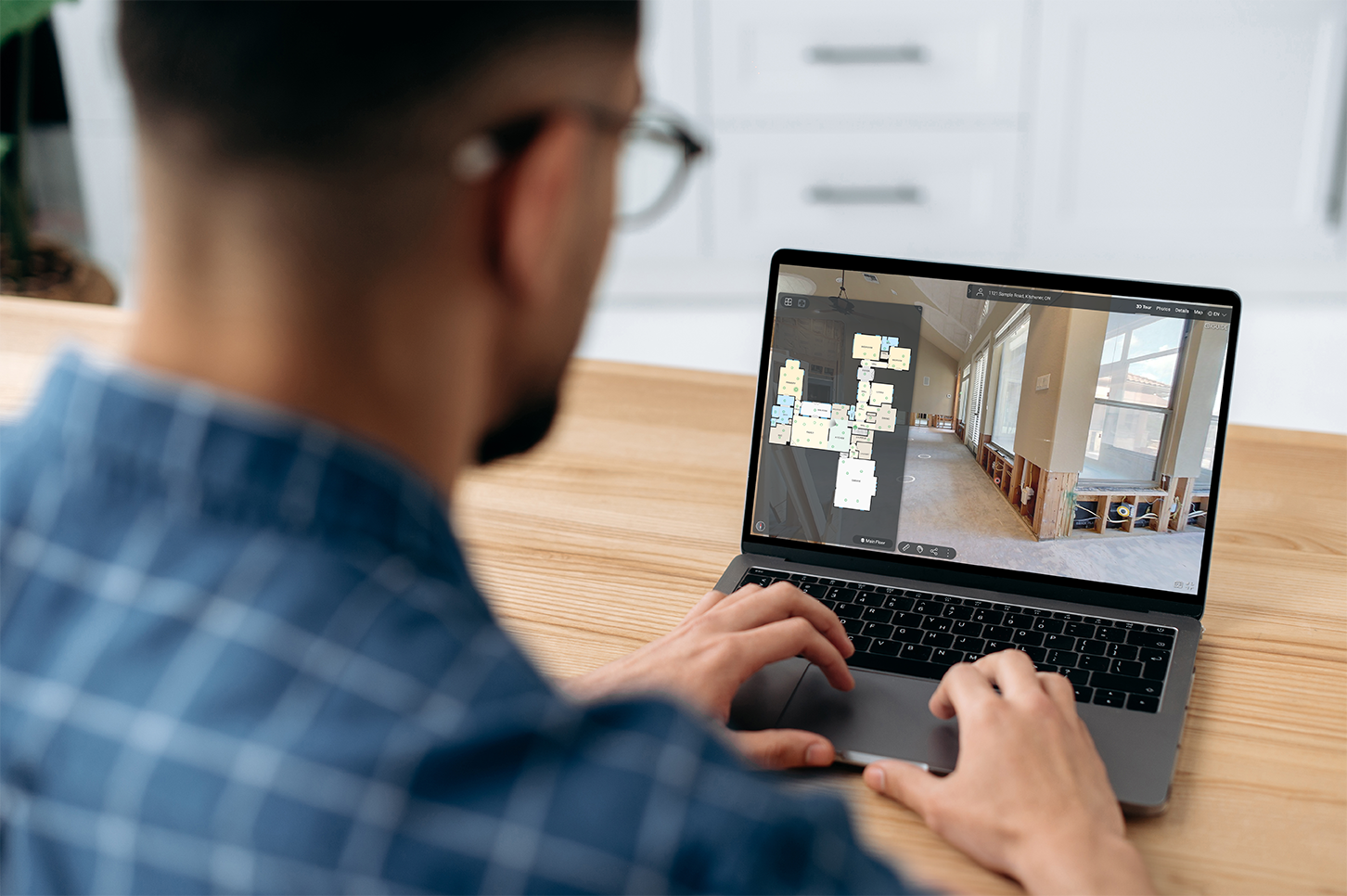

Use our floor plans as standalone marketing assets or integrate them with an additional iGuide 3D virtual tours for a comprehensive property showcase.
We're super nerdy about our laser beams
Laser-Accurate LiDAR Measurements
The same technology that powers self-driving cars is used to create ultra-precise property measurements. Unlike traditional laser-tape methods, our system fires hundreds of laser points per second—like a sonar beacon—scanning and mapping every detail of the interior with unmatched efficiency. The result? Accurate, data-rich floor plans that leave no room for error.
Highly Detailed & Canadian-Compliant
Compliant And Detailed Floor Plans
Our floor plans aren’t just visually appealing—they’re built to meet strict RECA RMS 2024 measurement standards, ensuring every square foot is documented correctly. From room dimensions to total living space, every plan is designed for accuracy, clarity, and full compliance with real estate regulations, such as the Strata Property Act, for example.
Forget "Fast, Cheap, & Good." We offer Efficient, Affordable & Fantastic Floor Plans.
Fast And Efficient Capture
Speed and precision go hand in hand. Our advanced capture process quickly scans entire properties with minimal disruption, delivering high-quality measurements and interactive 3D floor plans in record time. Get more done in less time—without sacrificing accuracy.
What we do
How It's Done.
Our process is simple and streamlined for efficiency. It all starts with scheduling us in…
#1 - Book Us In
You estimate the size of the home, and schedule the best time for efficiency.
#2 - We Arrive
On site, we tour the property to ensure we can access the home freely & undisturbed, so we can focus on accuracy while measuring.
#3 - We Measure
Ceiling Heights, Wall Thickness, Voids, everything is captured in our Measurement Scans. The data is manually extracted by hand to create a hand-drawn and extremely detailed floor plan.
#4 - We Deliver
Our delivery time is typically 24-48H depending on the complexity of the project. Available in a variety of colours & equipped for a variety of industries & applications.
Measurement Standards.
Square footage measurement is more than just numbers—it’s about consistency, compliance, and clarity for buyers and sellers. While ANSI Z765 is widely used in the U.S., in Canada, we adhere strictly to RECA RMS 2024 to ensure measurements align with national real estate standards.
Many buyers assume they’re purchasing a 2,320 sq. ft. home, only to realize later that the interior living space is actually 2,115 sq. ft. because they didn’t account for wall thickness, voids, uninhabitable areas or under-stair storage areas, & other exclusions. Our approach ensures that every square foot is clearly categorized, preventing surprises and ensuring informed decisions.
In British Columbia, there is no mandated real estate measurement standard, meaning square footage can vary depending on who measures and how. This lack of consistency can lead to discrepancies in listings, creating misleading expectations for buyers and sellers. To eliminate this issue, we adhere to strict, transparent, and repeatable measurement practices based on recognized Canadian standards.
🇨🇦 RECA RMS 2024
Canadian real estate measurements
✅ Fully-Finished basements counted in Square Footage
✅ Interior Floor Area Measurements
🇺🇸 ANSI-Z765
U.S. real estate measurements
❌ Below-grade spaces excluded from finished sq ft
❌ May not reflect true livable space (ie; No Interior Areas, Just simply “Finished V UnFin.)
"Love the measuremernt details page! Makes it so easy to input this into matrix to upload the listing. Square Footage summary of each room is awesome! So helpful buddy, Thx again"
DM
REAL ESTATE PROFESSIONAL
We'd Love to Measure Your Space!
Book Us In Now:
Sed ut perspiciatis unde omnis iste natus error sit voluptatem accusantium doloremque laudantium, totam rem aperiam
DWG Floor Plans for AutoCAD
Construction Industry.
Sed egestas, ante et vulputate volutpat, eros pede semper est, vitae luctus metus libero eu augue. Morbi purus libero, faucibus adipiscing, commodo quis, gravida id, est. Sed lectus. Praesent elementum hendrerit tortor.
Efficienty & Innovation.
The days of manual drawing are a thing of the past. iGUIDE offers the fastest and most cost-effective solution for capturing and drafting 2D floor plans. The DWG file export is intended as a head start on architectural and construction floor plans, as well as as-built and design drawings. With the iGUIDE PLANIX Camera System, you're enhancing your floor plan drafting workflow, making it more efficient and innovative
CAD/DWG Benefits
There are numerous advantages to using iGUIDE DWG Floor Plans in conjunction with iGUIDE 3D Tours. These include the ability to take thousands of measurements instantly for improved accuracy at a level of LOD 200 – level of detail with a faster rate of capture that allows properties to be measured in minutes rather than hours, and an enhanced speed of delivery, with floor plans delivered in 48 hours instead of the typical 5-10 days.
Rapid Delivery
One of the biggest advantages of using iGUIDE DWG Floor Plans is the quick turnaround time. Your detailed, accurate floor plans will be delivered to you in 48 hours or less, whereas the typical turnaround time is 5-7 Business Days. This rapid delivery ensures you can move forward with your project in a timely manner, eliminating unnecessary delays and keeping your workflow efficient"
